Stellar Series

Solar Sun Shade

Shade Within, Solar Beyond
Born for Building Energy Efficiency

Maximize your building's power generation by 2-3 times with the Stellar Series! Featuring customizable horizontal, vertical, and louver modules, these elegant designs enhance aesthetics, improve interior comfort, and efficiently generate solar energy, seamlessly fitting any architectural style.

Efficient Shading and Ventilation
Customizable Solutions
Premium Safety Features
Bifacial Power Generation
Rapid & Effortless Installation
Hidden Cable Design

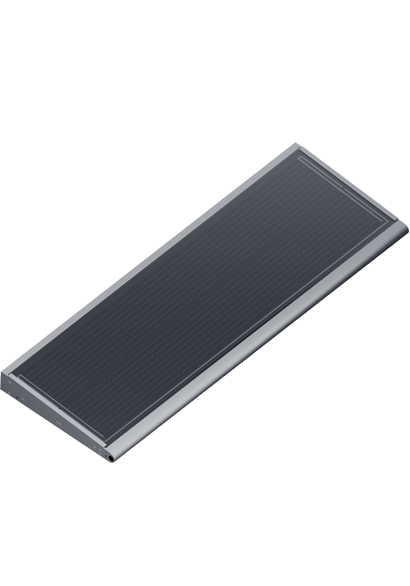

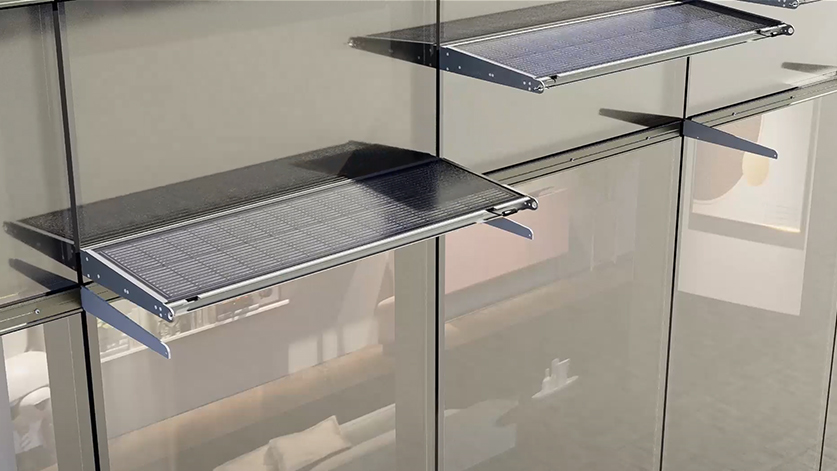

Horizontal Solar Shade

• Efficient Shading and Ventilation
• Anti-dust & Self-cleaning Design
• Aesthetical Customization
• Premium Safety Features

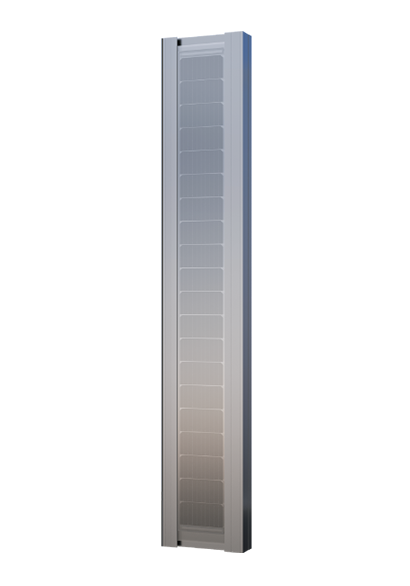

Vertical Solar Shade

• Bifacial Power Generation
• Customizable Solutions
• Hidden Cable Design
• Rapid & Effortless Installation

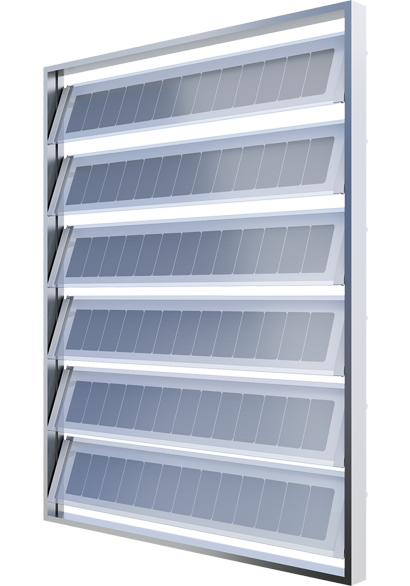

Solar Louver

• Adjustable Angle for Optimal Powering & Shading
• Premium Safety Features
• Efficient Sun Shading
• Diverse Application Scenarios

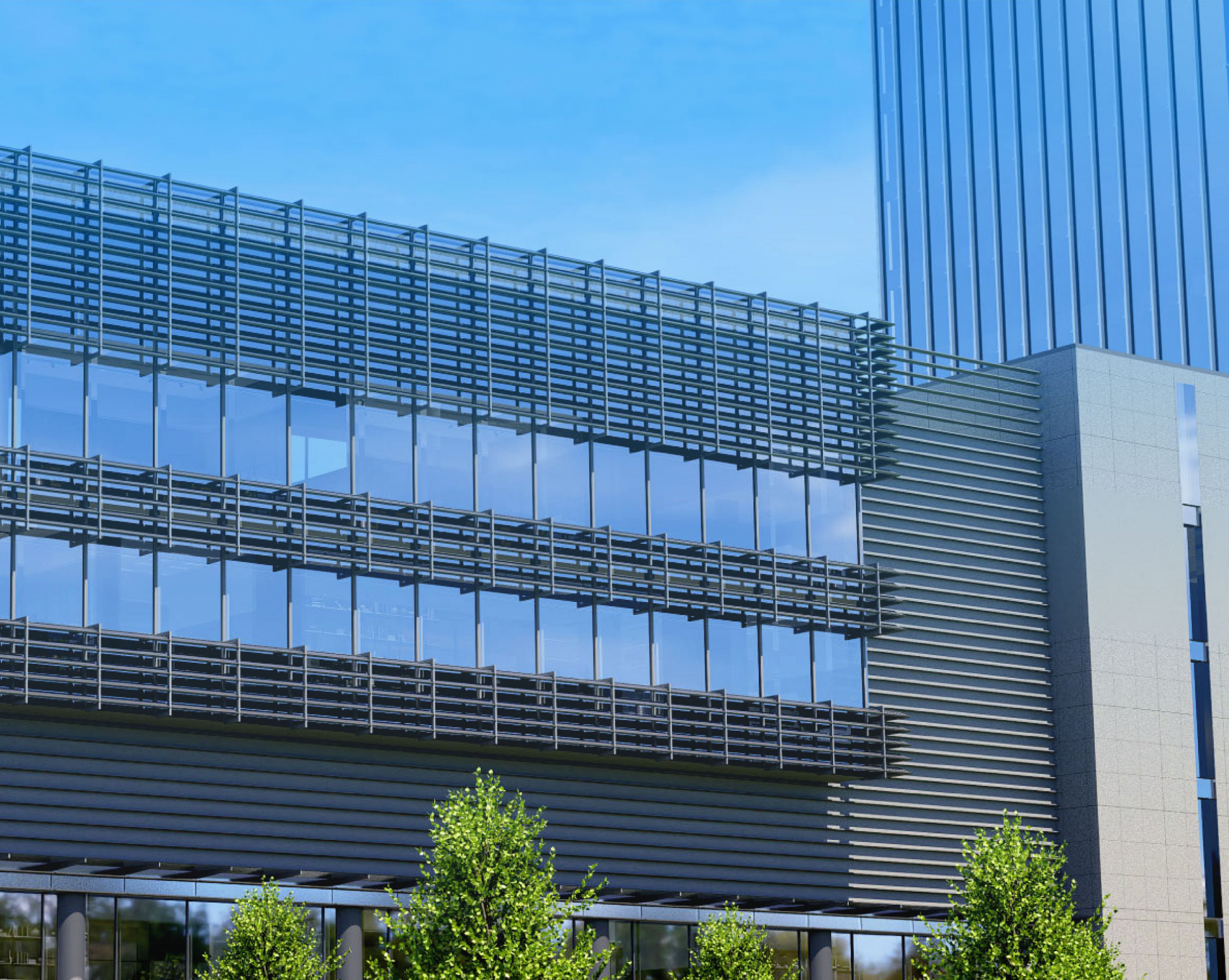

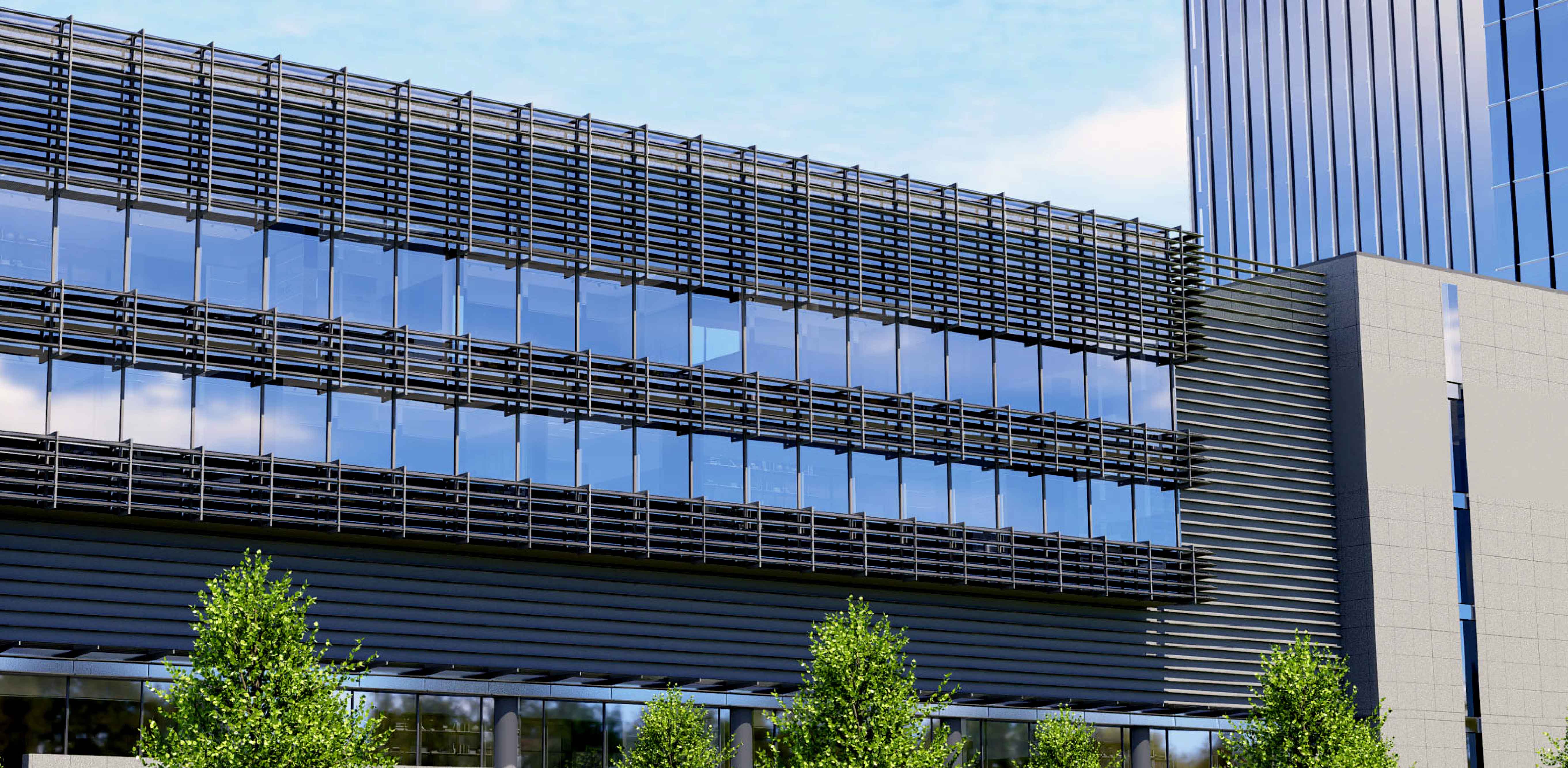

The product is used for the walls of commercial buildings

Multiple Application Scenarios

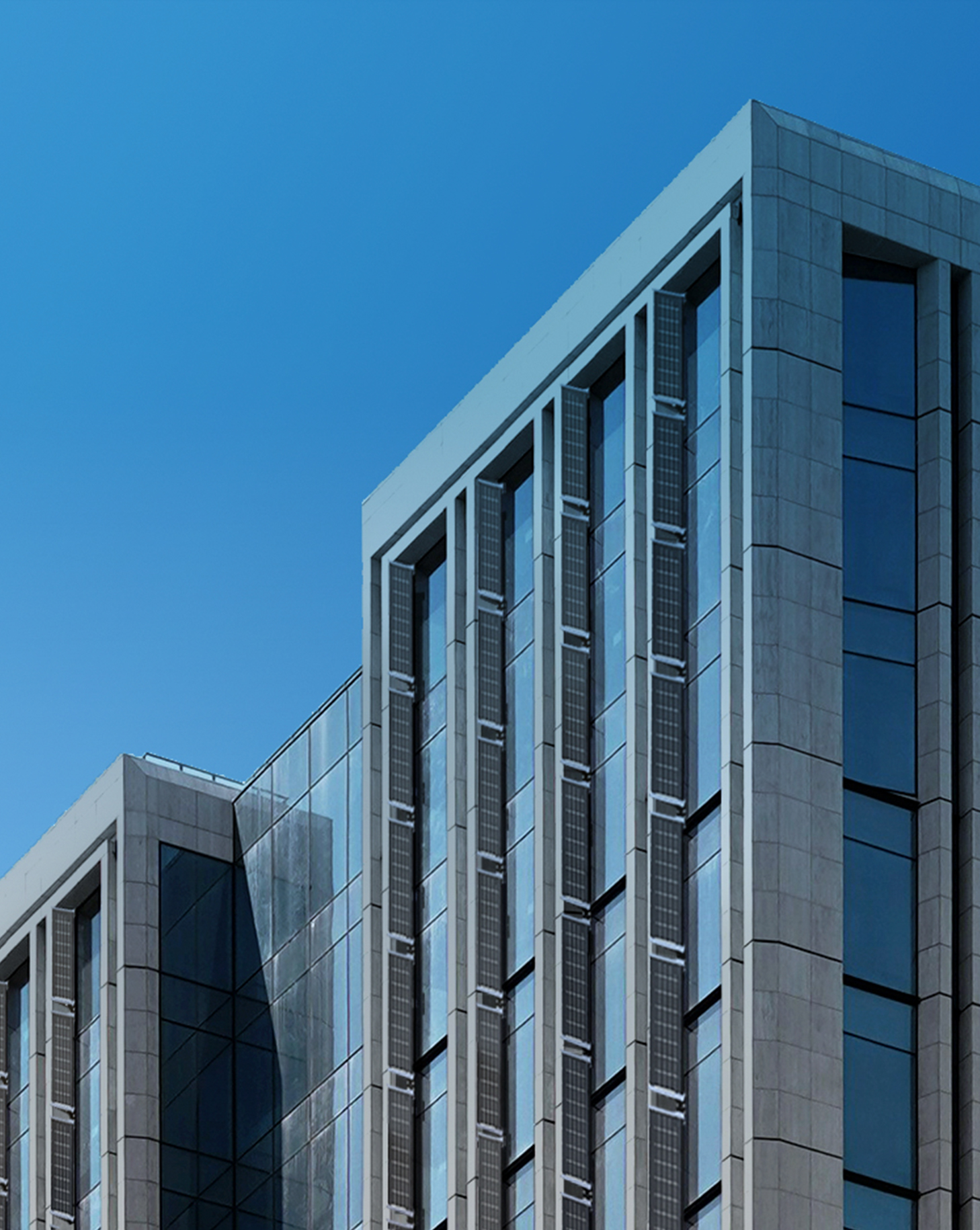

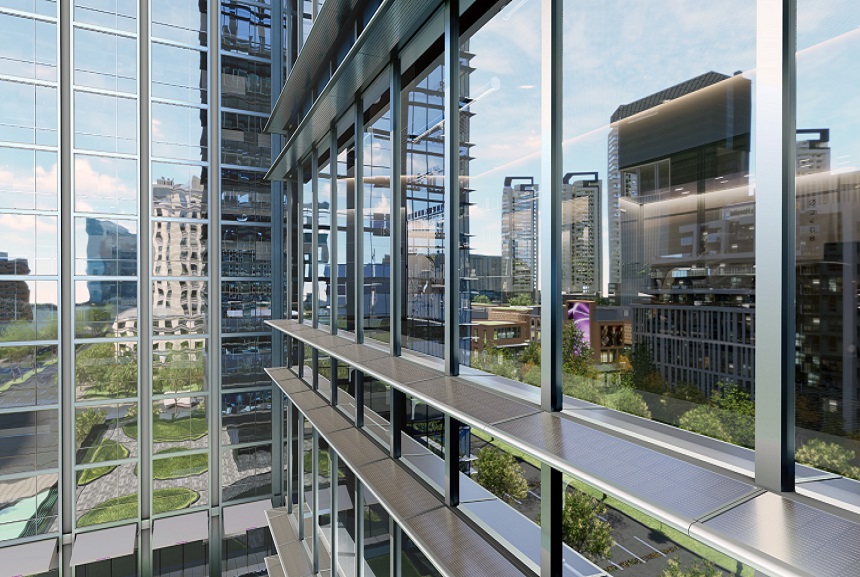

High-rise Buildings

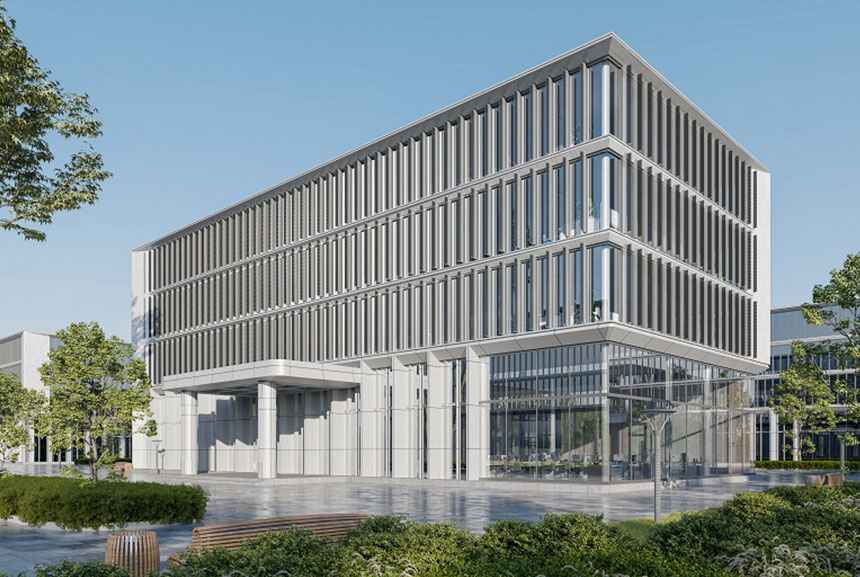

Commercial Plazas

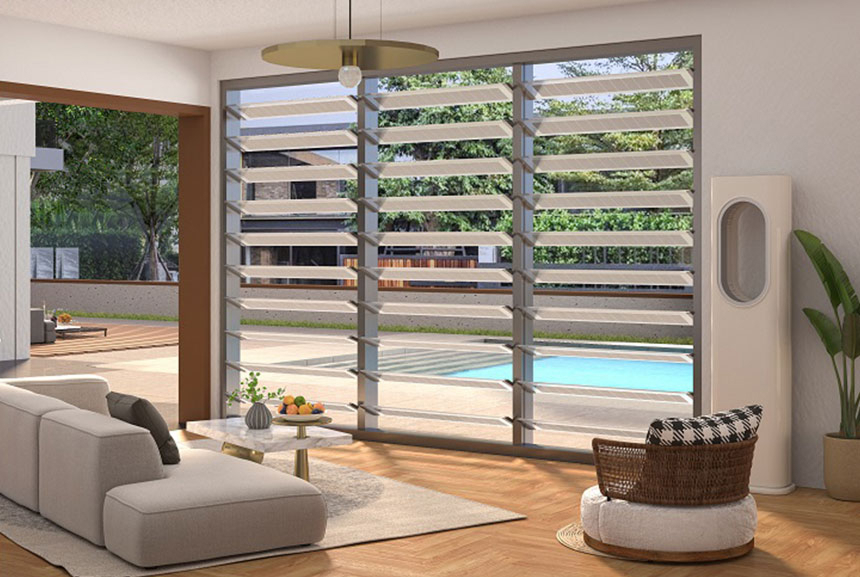

Residential Villas

Stellar's facade PV system breaks through traditional tilt limitations, perfectly adapting to curtain wall structures. Adjustable louvers maximize power generation while providing shade, with modular customization ensuring architectural aesthetic unity.
The diversified photovoltaic shading system offers unique PV curtain wall solutions for commercial complexes. Color/size customization enables buildings to showcase commercial appeal while generating green energy efficiently.
Stellar's premium customization meets villa owners' individualized aesthetic demands. The integrated facade design combines PV generation with energy efficiency, while adjustable louvers balance privacy and daylighting needs.

Technical Specs

Stellar-L_45W
Stellar-V_73W
Stellar-H_102W

BMW-L2/013A
Stellar-L_45W
- Power

  45W
- Size

  1404 *267-317*17.5 mm
- Weight

  16.4±0.5Kg ; 17.2±0.5Kg
- Cell

  N-type Topcon
- Load Capacity

  5400Pa
- Protection Class

  II
- Fire-resistant

  Class A
- Power/㎡ (W/㎡)

  139W/㎡
Download

Stellar_45&73W&102W_Flyer_en
BMW-V1/020A
Stellar-V_73W
- Power

  73W
- Size

  1990±2*336±2*17±1mm
- Weight

  29.3±0.5kg
- Cell

  N-type Topcon
- Load Capacity

  5400Pa
- Protection Class

  II
- Fire-resistant

  Class A
- Power/㎡ (W/㎡)

  109W/㎡
Download

Stellar_45&73W&102W_Flyer_en
BMW-D2/028A
Stellar-H_102W
- Power

  102W
- Size

  1392±2*487±2*83.6±1 mm
- Weight

  18.5±0.5kg
- Cell

  N - Typ Topcon
- Load Capacity

  5400Pa
- Protection Class

  II
- Fire-resistant

  Fire-resistant
- Power/㎡ (W/㎡)

  150W/㎡
Download

Stellar_45&73W&102W_Flyer_en

Cases

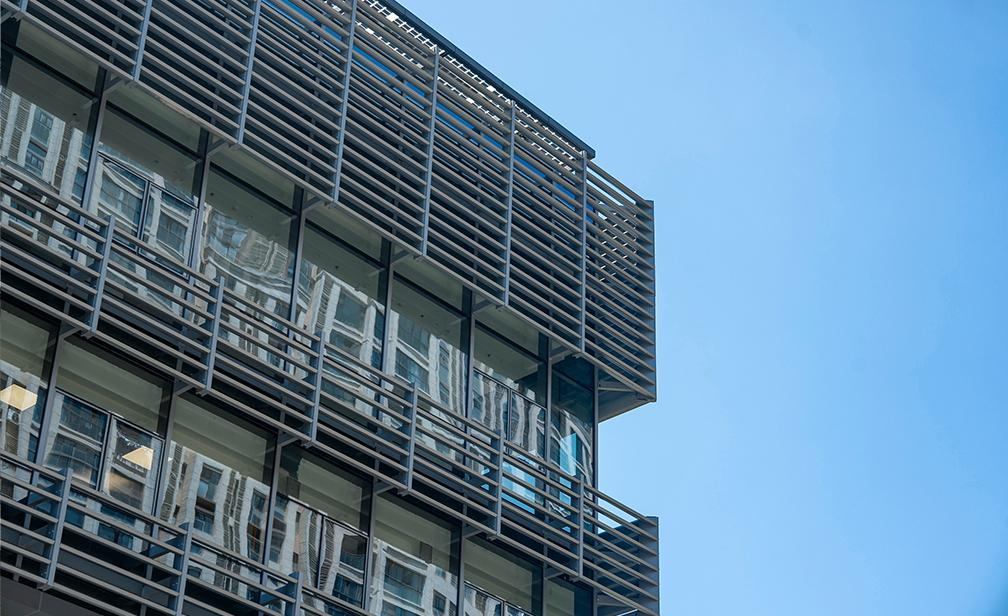

GoodWe Smart Energy Building Project

Power Generation Capacity: 243.8 kW

Area：Suzhou, China

Product：Stellar Series
TOYOU Technology Manufacturing Base Project

Power Generation Capacity: 9.08 kW

Area：Changsha, China

Product：Stellar Series

Learn More

FAQ

Q

Is Stellar series suitable for retrofit projects?

Designed for new construction, Stellar requires façade integration during initial building assembly. Early architect collaboration ensures proper structural integration.
Q

Can Stellar-L rotate?

Rotation depends on frame customization by third-party manufacturers. GoodWe supplies the core panels which are compatible with rotational frame systems.
Q

What distinguishes the two Stellar-V versions?
Key differences:
- Frameless: Single-cell layer design
- Framed: Dual-cell layers for structural reinforcement (recommended for elevated installations)
